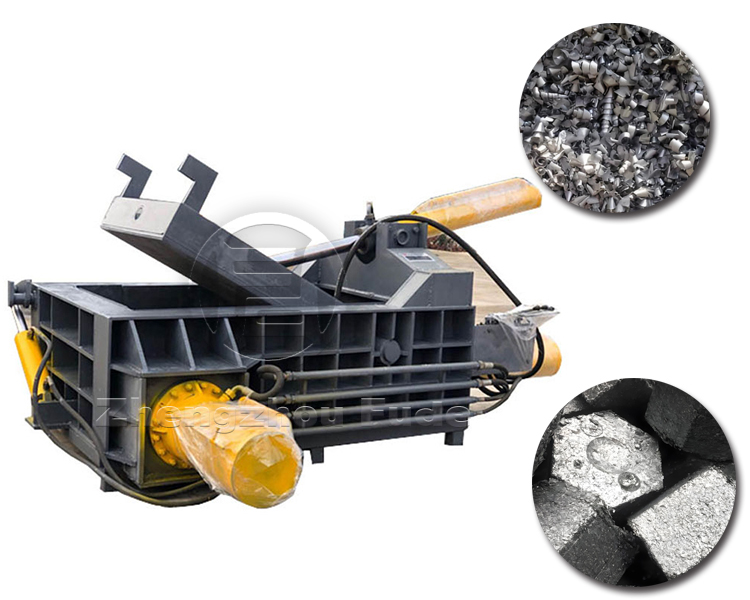

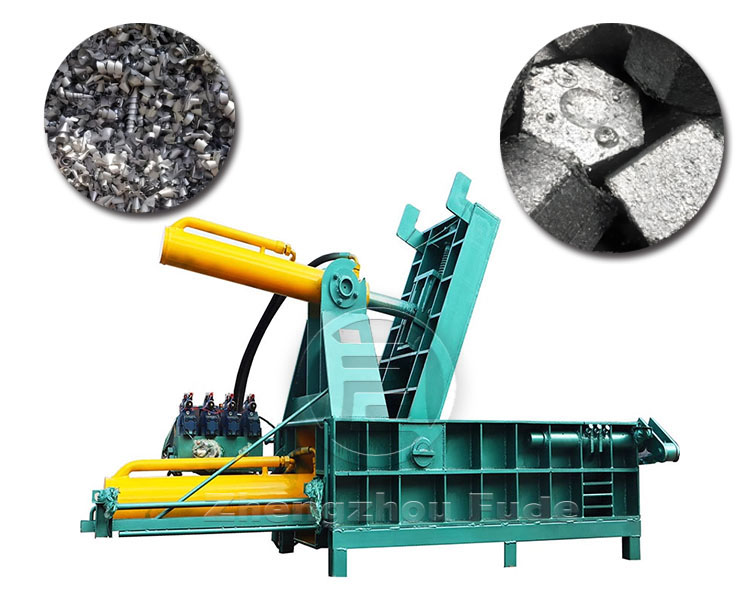

Aluminum chip pressing machine
Aluminum chip pressing machine
Aluminum chip pressing machine

Aluminum chip compactor is a widely used mechanical equipment for residual metal materials, including various types such as manual, hydraulic, and electric. By first compacting and then packaging, the metal waste is compressed into blocks, reducing storage and transportation costs.

NameSteAluminum chip pressing machineApplicable scopeSteel mills, recycling and processing industries
Driving methodHydraulic or dieselControl systemFully automatic (PLC control panel)
Table of Contents

    Working video of horizontal metal packaging machine

    Place the materials that need to be packaged and formed in the metal forming machine material box, use hydraulic oil cylinders to push and compress the materials that need to be packaged in the material box, and ultimately form various styles and sizes of packaging blocks, which are formed in one go and convenient for transportation.

    Why is it called an aluminum chip compactor?

    The aluminum chip compactor is mainly used to directly cold press aluminum sawdust and aluminum car chips into 1-4 kg cylindrical cake blocks through high pressure. The entire process does not require heating, additives, or other processes, in order to facilitate storage and reduce losses in the recycling and reuse process. Suitable for aluminum alloy profile factories, steel casting factories, aluminum casting factories, copper casting factories, automotive parts, hardware and other casting related enterprises. This series of equipment is divided into two types in terms of model classification: large tonnage vertical models and small tonnage horizontal models.

    Working principle

    Place the materials that need to be packaged and formed in the metal forming machine material box, use hydraulic oil cylinders to push and compress the materials that need to be packaged in the material box, and ultimately form various styles and sizes of packaging blocks, which are formed in one go and convenient for transportation.

    Equipment advantages

    1. The discharge form can be selected from different methods such as flipping the bag, pushing the bag, or manually picking up the bag (carrying the bag).
    2. Installation does not require foot screws, and diesel engines can be used as power in areas without power supply.
    3. There are ten levels of working extrusion pressure from 63 tons to 400 tons for users to choose from, with production efficiency ranging from 4 tons per shift to 40 tons per shift.
    4. The size of the compression chamber and the shape and size of the package can be customized according to user requirements.
    5. The machine can be equipped with loading box blades and a fast system, making operation more convenient;
    6. The main components are imported components, and the oil seal adopts brand oil seals, greatly improving the quality and service life of the machine;
    7. The side pressure oil cylinder of a 125 ton machine or above can be equipped with a fast gear, which is faster than packaging machines produced in the same industry.

    Applicable materials

    Hydraulic packaging machines can extrude various metal waste materials (such as scraps, shavings, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap cars, etc.) into qualified furnace materials in various shapes such as rectangular, octagonal, cylindrical, etc. This can not only reduce transportation and smelting costs, but also improve furnace feeding speed.

    Steel bar packing machine

    Before pressing the can block

    Steel bar packing machine

    After pressing the can block

    After the steel bars are pressed into blocks

    Before pressing steel bars into blocks

    Steel bar packing machine

    Before pressing aluminum chips into blocks

    Steel bar packing machine

    After pressing aluminum shavings into blocks

    Steel mills, recycling and processing industries, non-ferrous and ferrous metal smelting industries, and renewable utilization industries

    Product parameters

    ModelNominal thrust
    (KN)
    Size of pressure box
    (mm)
    Packaging block size
    (mm)
    Package weight
    (Kg)
    Yield
    (t/h)
    Power allocation
    (Kw)
    636301000*600*500190*19015~300.4~0.87.5
    10010001000*700*550230*23030~400.6~1.211
    12512501200*700*600300*30060~801.2~1.515
    13513501400*600*600600*24050~751.5~2.822
    16016001600*1000*800400*400110~1502.2~3.022
    20020001800*1400*900450*450210~3003.0~5.022*2
    25025002000*1750*1000500*500250~2805.0~6.322*2
    31531502500*2000*1200500*500250~3604.0~6.537*2
    40040003000*2000*1200500*600250~3806.8~8.045*2

    Customer briquetting sites in different regions

    On site feedback photos of customers from different regions suppressing different materials

    Metal briquetting machine
    Metal briquetting machine
    Metal briquetting machine
    Metal briquetting machine

    Aluminum chip pressing site

    Metal briquetting machine

    Scrap steel bar pressing site

    Loading and shipping

    The factory arranges different logistics vehicle sizes according to the customized machine models and sizes of different customers, ensuring timely delivery and reliable transportation

    Metal briquetting machine

    How to choose a metal compactor?

    When choosing a metal scrap iron compactor, attention can be paid to the material, process, structural design, and other aspects of the product, as well as whether there is a professional research and development team and technical support. Choose the appropriate equipment to increase the density of metal waste, reduce its occupancy space, and reduce storage and transportation costs. At the same time, pay attention to the reliability and durability of the equipment, as well as the maintenance costs in the later stage. Suitable models can be customized according to one’s own budget and actual needs.
