Metal shears

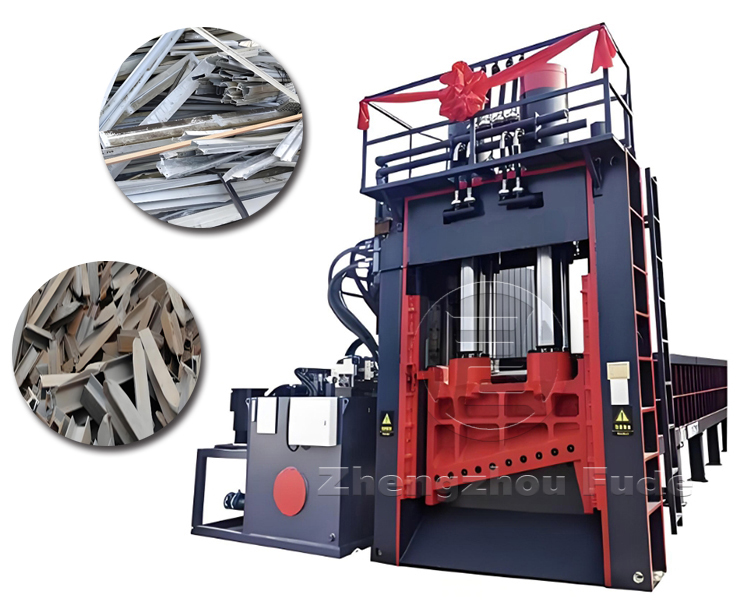

Large multifunctional scrap metal shearing machine
| Product features | Automatic |
| Processing customization | Support customization |
| Applicable objects | Scrap metal treatment and processing, recycling in utilization |
Working video of gantry shearing machine
The principle of this machine is to use an automatic feeding box to grab the material from the upper feeding box, and then send it to the cutting edge by the conveyor belt. The feeding speed can be controlled by a speed regulating motor. If large waste cannot pass through the gantry cutting edge, the waste can be compressed and reduced by the side compression oil cylinder, and then sent to the cutting edge through the conveying platform for cutting.
Large Metal Shears Product Introduction
The Industrial metal shears is a high-precision metal material cutting equipment, mainly used for the two directional fixed length cutting of longitudinal rings of materials such as steel plates and profiles. It is driven by hydraulic pressure,; The body part is a mechanical structure with a double column guiding form, making the machine run more smoothly; The blade system is equipped with a shock-absorbing rubber device, which can effectively reduce the generation of vibration and noise.

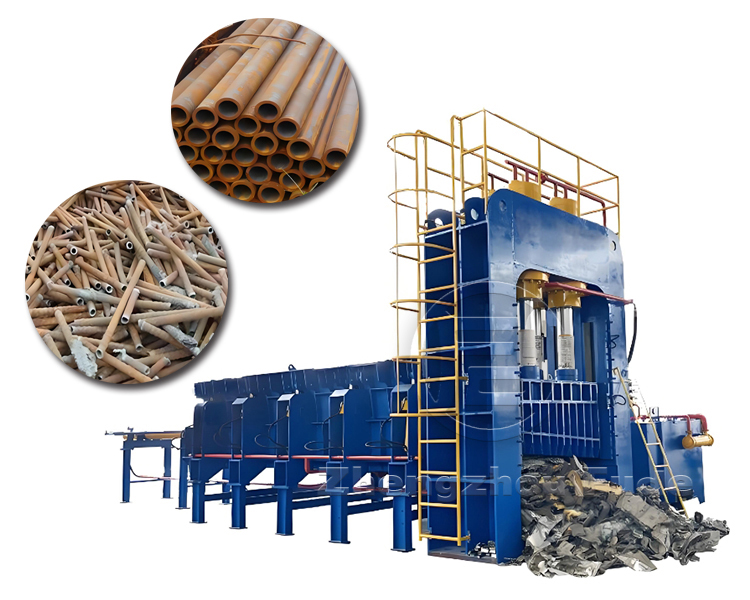

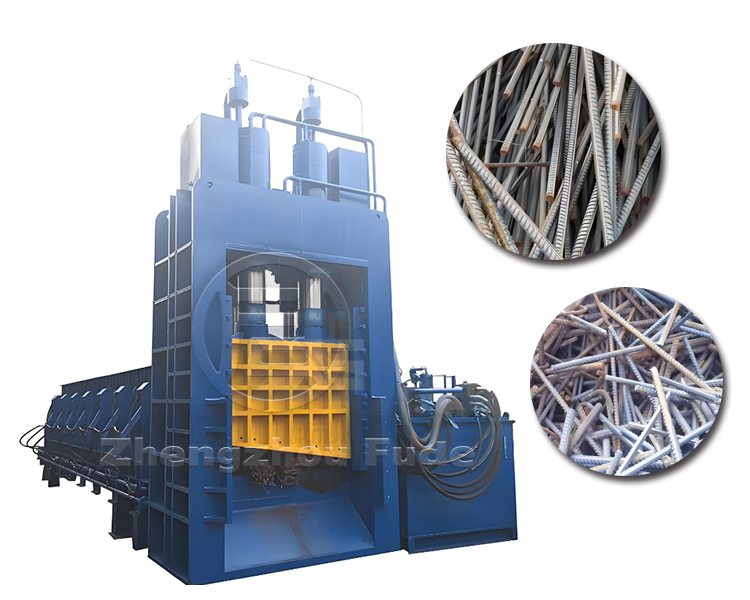

Heavy duty gantry shearing machine
The structural principle of the gantry shearing machine
Structural diagram
In principle, the scrap steel shearing machine uses an automatic feeding box, which means that after the material is grabbed from the upper feeding box, the waste is automatically sent to the cutting edge by the conveyor belt, and the feeding speed can be adjusted by the speed regulating motor. There are side compression cylinders on both sides of the material box. For large waste materials such as scrapped cars that cannot pass through the gantry shear blade, they can be compressed and reduced by the side compression cylinder, and then sent to the shear blade through the conveyor platform for cutting.
Product parameters of scrap metal cutting machine
| Product model | Maximum shear force | Bin size (mm) | Opening height (mm) | Knife edge length (mm) | Output (t/h) | Shear frequency (times/minute) | Main motor (kW) |
| 315 | 3150 | 3000*1200*800 | 400 | 1200 | 4-8 | 3-4 | 90 |
| 630 | 6300 | 800*1800*900 | 500 | 1800 | 4-8 | 3-4 | 225 |
| 1250 | 1250 | 8000*2000*1200 | 700 | 2000 | 4-8 | 3-4 | 405 |
Metal shearing equipment for multifunctional use
The shearing machine equipment is mainly suitable for cutting metal sheets such as steel plates, angle steels, channel steels, steel bars, square steels, square tubes, and scrap aluminum alloys.
Square tube
Square steel
Scrap material
Scrap steel bars
I-beam
Angle steel
Scrap steel plate
Steel pipe
Metal Shearing Equipment Product Features
- Add a high-pressure filter to the hydraulic system. The hydraulic oil needs to pass through a high-pressure filter before entering the pipeline and hydraulic control valve. (High pressure filter comes with alarm)
- Independent air cooling: This machine adopts a high air flow air cooling machine to control the oil temperature of the hydraulic oil within the normal range of use. At the same time, the air-cooled machine solves the problem of inconvenient water sources due to the occupied area of the water cooler.
- PLC manual automatic control box. Can achieve manual and automatic replacement. Equipped with a remote control for remote start, stop, and automatic operation.
- Pushing groove with pressure cover: It can achieve automatic feeding and simultaneously push the material along the pressure cover to the main cutting machine for cutting.
- Connecting device at the front end of the cylinder rod. Effectively protect the cylinder rod from damage.
Longmen Scissor Head
Control box for gantry shear
Metal shears for sale at favorable prices
We have consulted and followed up with our cooperative clients from countries such as the United States, Canada, Mexico, Germany, Russia, and Italy on the effectiveness of using gantry shearing machines. They have given a very satisfactory response, stating that the failure rate is very low, the cutting surface is large, and the operation is safe.
American customer cutting steel plate on-site
Canadian customer cutting aluminum alloy sheet material on-site
Mexican customer cutting square tube on-site
German customer cutting I-beam on-site
Russian customer cutting waste on-site
Italian customer cutting scrap iron on-site
Metal Shearing Machine Price, Shearing Machine Equipment Manufacturer
Customized machine shipment inspection
How to choose a suitable gantry shearing machine
When choosing a gantry shearing machine, the following points need to be considered:
- Cutting ability: Select the appropriate cutting ability according to actual needs to adapt to the specifications and thickness of the material to be cut.
- Blade material: The material of the blade directly affects the cutting effect and efficiency, and high-quality alloy steel and other high-strength, wear-resistant materials need to be selected.
- Transmission system: The stability and reliability of the transmission system determine the overall performance and service life of the equipment, and high-quality transmission components and designs should be selected.
- Automation level: Choose manual, semi-automatic, or fully automatic gantry shearing machines as needed to improve production efficiency and reduce labor costs.
(Suitable machine models can be customized according to specific customer needs)
