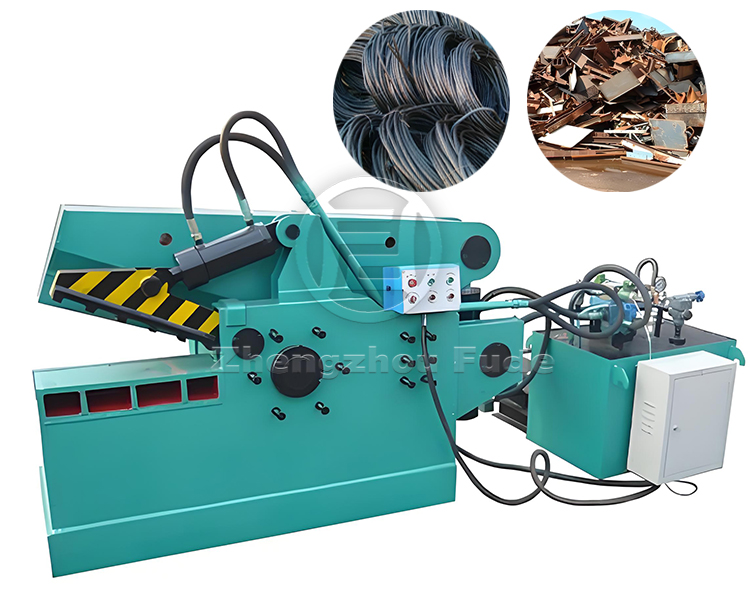

Metal crocodile shears
Metal Shears for Scrap Metal Sheet Processing and Disposal
type：Cutting machine
Applicable objects：Reinforced steel pipe and iron sheet
customized：yes
quality assurance：a year
Driving method：electrical machinery
Layout form：horizontal type
Motor version of the metal shear operation use
This crocodile shearing machine can be operated continuously automatically or manually in a single operation, making it a good processing equipment for cutting heavy waste, light and thin furnace materials, and steel bars.
Scrap metal shearing machine product introduction
The crocodile type shearing machine is an efficient and powerful metal shearing equipment, mainly used in the recycling industry of waste materials, steel, non-ferrous metals, and other metal processing industries. Its design inspiration comes from the mouth of crocodiles, which simulate the biting action of crocodiles to achieve cutting of metal materials.
Crocodile type metal shearing machine
Cutting machine factory diagram
Steel pipe shearing machine
Iron sheet shearing machine
I-beam shearing machine
Steel bar shearing machine
What is the working principle of the crocodile type shearing machine
The metal hydraulic shearing machine is first driven by a hydraulic pump to generate pressure, and under the control of an electromagnetic directional valve and oil circuit, it achieves the lifting and contraction of the oil cylinder. After pre pressing and locking, through the continuous pushing and lifting action of the main oil cylinder, the upper crocodile moving knife and the lower crocodile fixed knife achieve interactive cutting, thereby cutting off the material entering the incision.
hydraulic cylinder
Safety Signs
Detail drawing
Shearing knife
Scrap metal shearing machine product parameters
| model | 160T | 200T | 250T |
| Maximum shear force | 1600KN | 2000KN | 2500KN |
| Maximum pressure | 190KN | 190KN | 190KN |
| Blade length | 800MM/1000MM | 1000MM | 1000MM/1200MM |
| Maximum opening of the blade | 300MM/400MM | 400MM | 400MM/500MM |
| electrical machinery | 15KW | 18.5KW | 22KW |
| Number of cuts | 7-10 | 8-10 | 8-10 |
Crocodile type steel bar shearing machine
Shearer equipment in the metal industry
The metal shearing equipment is mainly used in the waste material processing industry, dismantling plants, small and medium-sized steel plants, metal crushing plants, etc., to perform cold shearing on various forms of metal and further process them into qualified furnace materials. There are various advantages in the metal processing industry, such as easy operation, simple structure, high shear pressure, and low maintenance costs. It is driven by hydraulic pressure and has the characteristics of small volume, low noise, and smooth operation. It is easy to achieve overload protection and provides an efficient and convenient solution for waste material recycling and metal material processing.
Crocodile shear steel pipe shearing machine
Metal plate shearing machine use effect
Australian customer operation site
Canadian customer on-site operation
Türkiye Customer Field Practice
Indonesian customer on-site operation
The Industrial metal shears has strong cutting ability, simple and convenient operation, high cutting accuracy, wide applicability, low maintenance cost, and environmental protection and energy conservation advantages in the metal processing industry. These advantages make crocodile shearing machines an indispensable and important equipment in the fields of waste material processing, dismantling, and recycling.
Metal shears for sale at favorable prices
Application scope of crocodile type shearing machine
The Metal Cutting Shears is mainly suitable for various metal waste materials, including but not limited to scrap iron, scrap steel, steel bars, steel pipes, steel plates, angle iron, channel steel, square steel, round steel, and other materials. This equipment can perform cold shear processing on these materials, making them qualified furnace materials or other reused materials. It is also suitable for fixed length cutting of steel profiles in steel mills. It has a wide range of applications, not only suitable for waste recycling stations, metal processing plants, metal dismantling plants, smelting and casting plants, but also suitable for places such as scrap iron recycling stations, steel mills, crushing plants, and automobile dismantling plants.
rebar
wirerope
Iron sheet
Tire rims
gas tank
color steel tile
steel pipe
steels
Precautions for Hydraulic Metal Shears
1.Operators: Ensure that they have received professional training and understand the equipment operation and safety regulations.
2.Lubrication and maintenance: Regularly add lubricating oil and butter to maintain the equipment in good condition.
3.Material handling: Avoid cutting prohibited materials and do not use hands to directly contact materials or moving parts of the machine.
4.Safety protection: Wear personal protective equipment and keep away from the transmission and cutting edge.
5.Start and stop: Before starting, ensure that there are no obstacles above the machine. After stopping, wait for it to come to a complete stop before operating.
6.Rainy protection: Avoid working outdoors to ensure safe and dry operation of the machine.
7.Maintenance and repair: Do not repair during work, inspect and maintain after shutdown.
8.Power management: Turn off the power when leaving the position to ensure safety.
